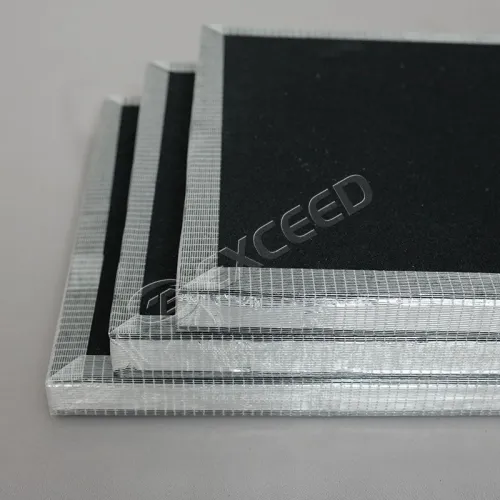

TOPVQ® provides the renewed products by covering PU (polyurethane), XPS, rubber particle and calcium silicate board over the VIP panel, which is an advanced and innovative insulating material with perfect appearance, high mechanical damage resistance, and excellent insulation performance.
Product Description
TOPVQ® provides the renewed products by covering PU (polyurethane), XPS, rubber particle and calcium silicate board over the VIP panel, which is an advanced and innovative insulating material with perfect appearance, high mechanical damage resistance, and excellent insulation performance. Not only has the heat insulating performance, it also has the advantages in size control, installation, security. Technically it solves the imperfection of VIP during the usage.
| Model | TOPVQ-PV(PU+VIP) / TOPVQ-PX(XPS+VIP) TOPVQ-PR (RUBBER+VIP) TOPVQ-PC (CALCIUM SILICATE+VIP) |
| Color | Yellow+Silver / Blue / Black / Grey |
| Geometry | Rectangular shape and various shapes |
| Density | 100-200kg/m3 (*Varies with actual proportion of VIP and PU) |
| Thermal Conductivity W/(m·k) – For Reference Only, and different combination would be different values. | 5mm PU + 20mm Glass Fiber VIP + 5mm PU: 3.61mw/m*k; 5mm XPS + 20mm Fumed Silica VIP + 5mm XPS: 5.54mw/m*k; 3mm Rubber Particle Sheet + 20mm Fumed Silica VIP + 3mm Rubber Particle Sheet: 6.0mw/m*k; 3mm Calcium Silicate +15mm Fumed Silica VIP + 3mm Calcium Silicate: 7.0mw/m*k |
| Maximum Dimension | L2000*W1500mm |
| Thickness | Up to 100mm |
| Thermal Conductivity (25°C) W/(m·k) | Fire Rating | Maximum Operating Temperature(℃) |
|
0.00361~ 0.007 |
A1 | -80 ~ 1000 |
● Cold Chain Logistics
● Pharmaceutical Packaging and Transportation
● Fire Protection and Insulation
● Home Appliances –Refrigerator, Water Heater
● Construction and Building Insulation
● Outdoor Boxes Insulation
● Reduce Energy Consumption, Extent the Heat Preservation Time Accordingly
● Reduce the Heat Loss
● Enlarge the Inner Space
● Excellent Sound Insulation
● Reduce the Energy Cost
● Improve the Comfort
● Extend the Heat Holding Time By Using Fewer Coolants
● Enlarge the Inner Space To Reduce The Logistics Costs
